ACDC Boss
Features & Benefits
Hot‑dip galvanized steel
Zinc‑iron alloy layer delivers superior corrosion resistance and abrasion self‑healing.
Powder‑coated finish
UV and weather protection for long‑term outdoor performance. Meets ANSI C57.12.28
Universal mounting design
Accepts 200 A, 600 A, and 900 A junctions for flexible configurations.
Operator‑friendly access
Top‑hinged lid and wide opening for single‑person servicing.
Lockout‑ready security
Penta‑bolt latch with padlock/LOTO provision.
Grounding & lifting points
Stainless 1/2"‑13 and 1/4"‑20 weld nuts provided where needed.
30H × 84W × 30D — Technical Snapshot

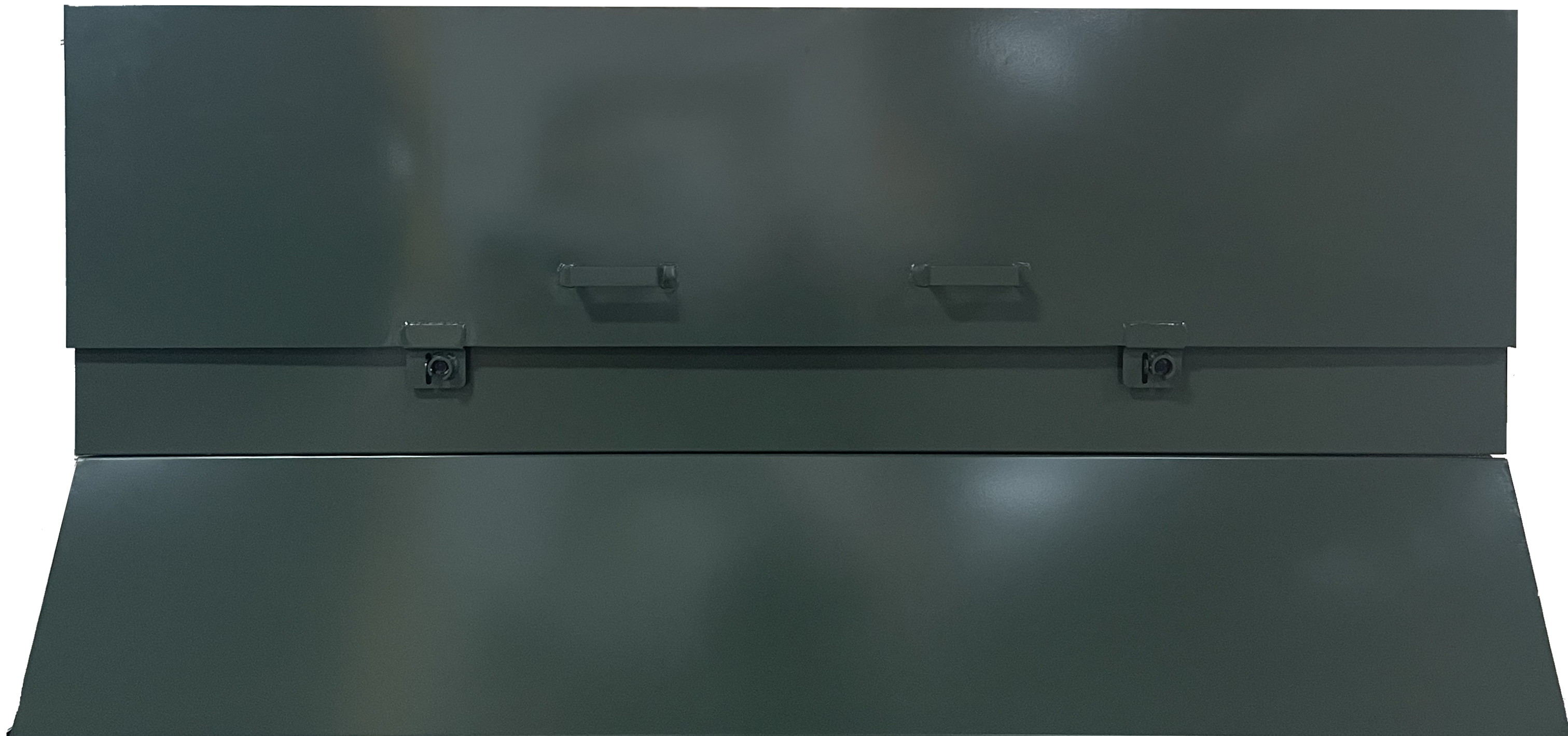

Product image
- Height: 30 in
- Width: 84 in
- Depth: 30 in
- Finish: Padmount Green (powder coat)
- Material: Galvanized steel

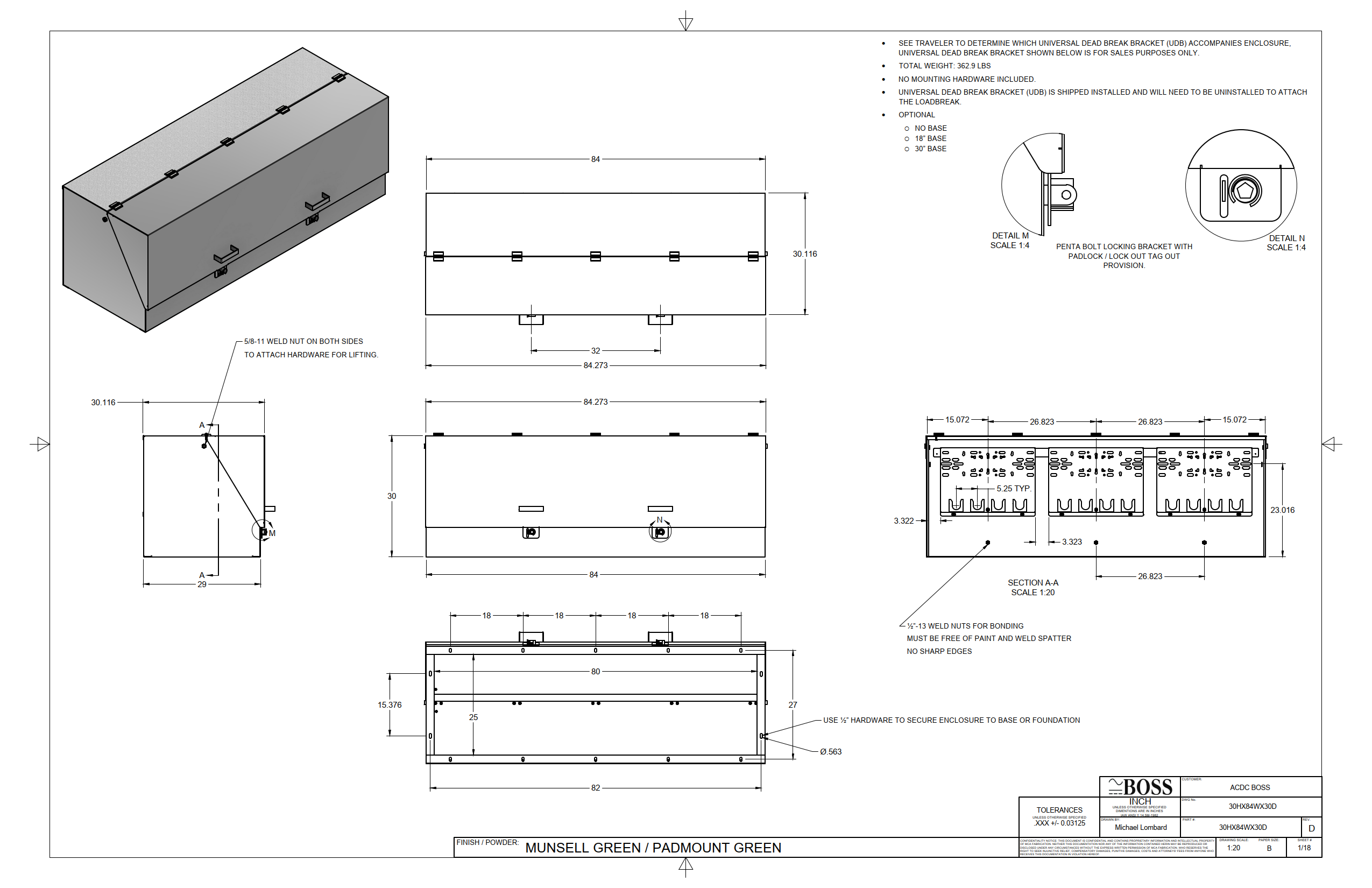

Typical Drawing — Galvanized Steel Construction
Applications
- Underground sectionalizing and termination
- Pad‑mounted distribution systems
- Harsh or coastal environments
- Long‑term outdoor utility installations
ACDC Boss Sectionalizer Model Range
| Model | Height | Width | Depth | Base Options | Notes | Enclosure Drawing | 18" Base | 30" Base |
|---|---|---|---|---|---|---|---|---|
| 30HX30WX22D | 30" | 30" | 22" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX30WX30D | 30" | 30" | 30" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX30WX38D | 30" | 30" | 38" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX66WX22D | 30" | 66" | 22" | None / 18" / 30" | Brackets: UDB1 | Download | Download | Download |
| 30HX66WX30D | 30" | 66" | 30" | None / 18" / 30" | Brackets: UDB1 | Download | Download | Download |
| 30HX66WX38D | 30" | 66" | 38" | None / 18" / 30" | Brackets: UDB1 | Download | Download | Download |
| 30HX84WX22D | 30" | 84" | 22" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX84WX30D | 30" | 84" | 30" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX84WX38D | 30" | 84" | 38" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX98WX30D | 30" | 98" | 30" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
| 30HX98WX38D | 30" | 98" | 38" | None / 18" / 30" | Brackets: UDB1, UDB2 | Download | Download | Download |
